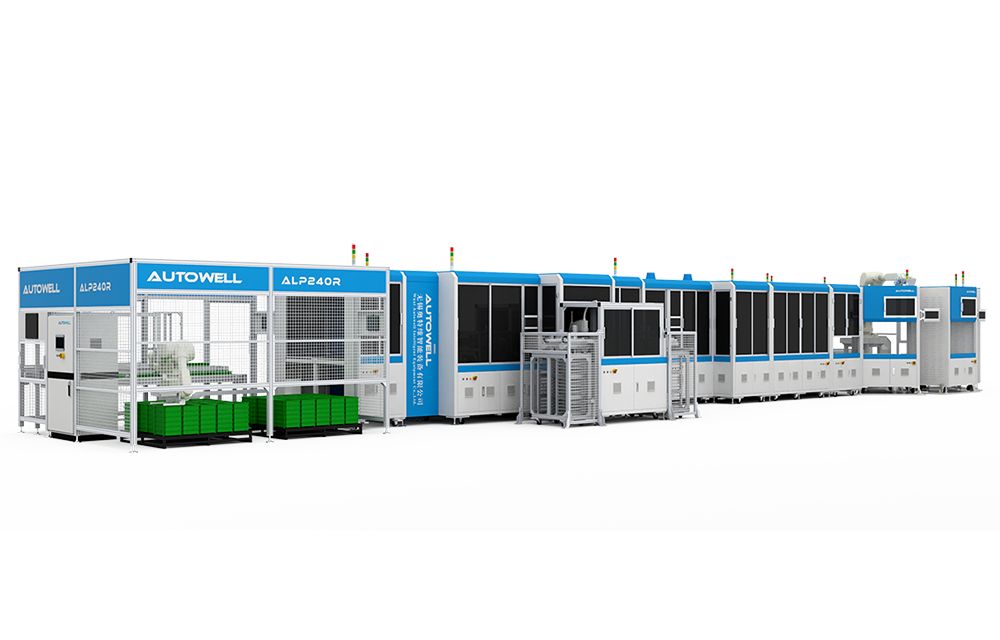

Module Automatic Assembly Line for Cylindrical Cells

The assembly line is an automated production line for assembling Cylindrical Cell into module. Its process flow mainly includes Cell Loading, Bar Code Scanning, OCV/IR Testing, Cell Sorting and Buffer, Cell Insert in Bracket, Bus Bar Assembly, Module Welding, Module Testing etc. The functions of Barley Paper Labelling, Plasma Cleaning, Cell Re-coding are optional.

Capacity

100-480PPM
Uptime

≥95%
Code Scan Reliability

≥99.9%
OCV/IR Testing Reliability

≥99.7%

Stable and efficient

uptime of the whole line≥95%, the fastest cycle time: 18ppm
Quality assurance

equipped with MES to gather key data, monitor and trace the quality through the whole process
Compact appearance

professional industrial design with the features of nice appearance, sound insulation, noise reduction and energy saving
Strong compatibility

suitable for multiple processes and different types of cells, flexible to produce more than one module length
Easy switchover

modular design enables quick switchover
Safe and reliable

imported key components are used for the insulation protection, physical isolation and live data backup for the whole line.
